Inspection Drones

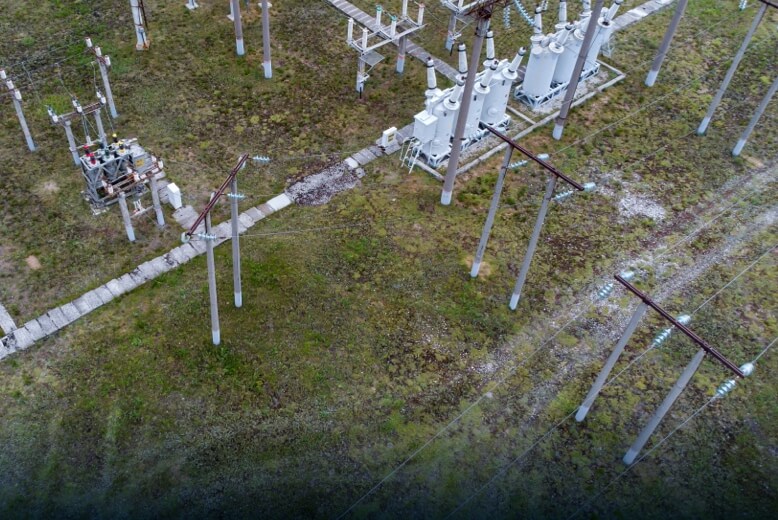

Substations and converter stations serve as essential nodes within the electrical grid, and their secure and reliable functioning depends on thorough and systematic inspections. Drones offer the agility and versatility to create precise digital replicas of these substations and conduct detailed examinations of electrical components using both visible and infrared imaging. This allows for the early detection of faults, thereby reinforcing the continuous and stable operation of the substations.

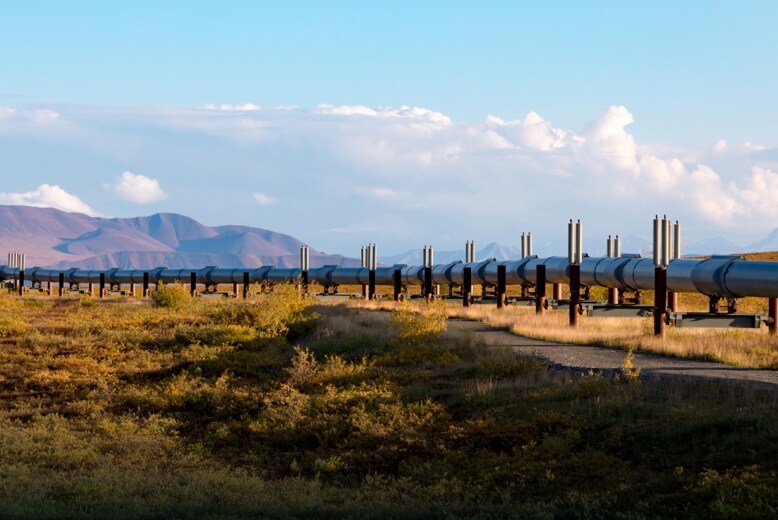

Oil fields feature numerous pipelines across diverse terrains, which are vulnerable to environmental factors. Remote locations complicate on-site inspections and pose safety risks. Utilizing drones equipped with visible light and thermal cameras for automated inspections can effectively mitigate these challenges. The compact and portable DJI Matrice 4T, outfitted with high-performance visible light and thermal imaging cameras, is ideal for comprehensive pipeline inspections.This solution is compatible with the DJI Cellular Dongle 2 [1], which provides 4G-enhanced image transmission, thereby extending its effective operating range in complex urban or mountainous terrains.Compact and lightweight, it is easy to transport and carry.4G-enhanced image transmission enables an extended operating range.Equipped with visual and infrared cameras for superior inspections.Supports fully automated and precise inspection routes, allowing the drone to capture data along the designated path.

During the daily inspection of pumping units, numerous points require meticulous attention. However, many inspection points are difficult to access and observe. Drones equipped with visible light and thermal cameras can effectively address this challenge by capturing multi-angle videos and photos, which can detect issues such as overheating, oil leaks, loose belts, and bolts. Additionally, drones can help bridge the gap in digital management systems and reduce the manual workload by providing easily stored and trackable inspection data.

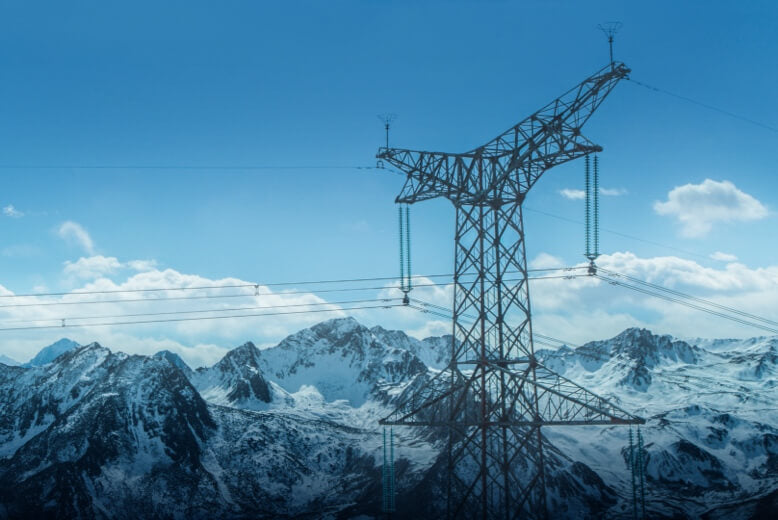

Transmission and Distribution inspections are crucial for preventing power losses and line failures. Automated drone flights can perform daily inspections of transmission lines, allowing for early identification of defects. With thermal cameras, these drones can detect abnormal high temperatures in equipment such as wire clamps and knife switches, enabling timely fault detection and the prevention of system failures.
